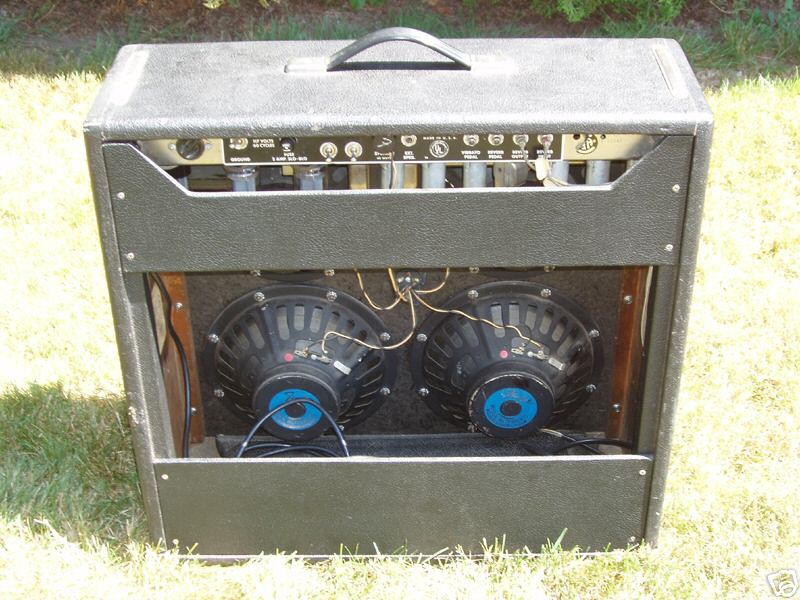

Vintage 1965 Fender Super Reverb Amplifier
and Original Footswitch
Blackface/Silverface Super Reverb Tube Specs:
4 - 12AX7 = 7025 = ECC83
2 - 12AT7 = 6201 = ECC81
2 - 6L6GC = 7581A
1 - GZ34 = 5AR4 (Later Silverface amps call for a 5U4GB)
Very good! This Super Reverb is 100% original, and comes with it's original footswitch. It had been recently serviced by a local Fender pro (in Canada). It had new tubes, and one cap had been replaced. No hums, hisses, or buzzing sounds, just pure tone. The reverb is lush and sounds like a great old black face should, as does the tremolo. It's transformers and other like parts all date to around the 42nd week of 65.
Super Clean, Super Original, Super Sound...SUPER REVERB!

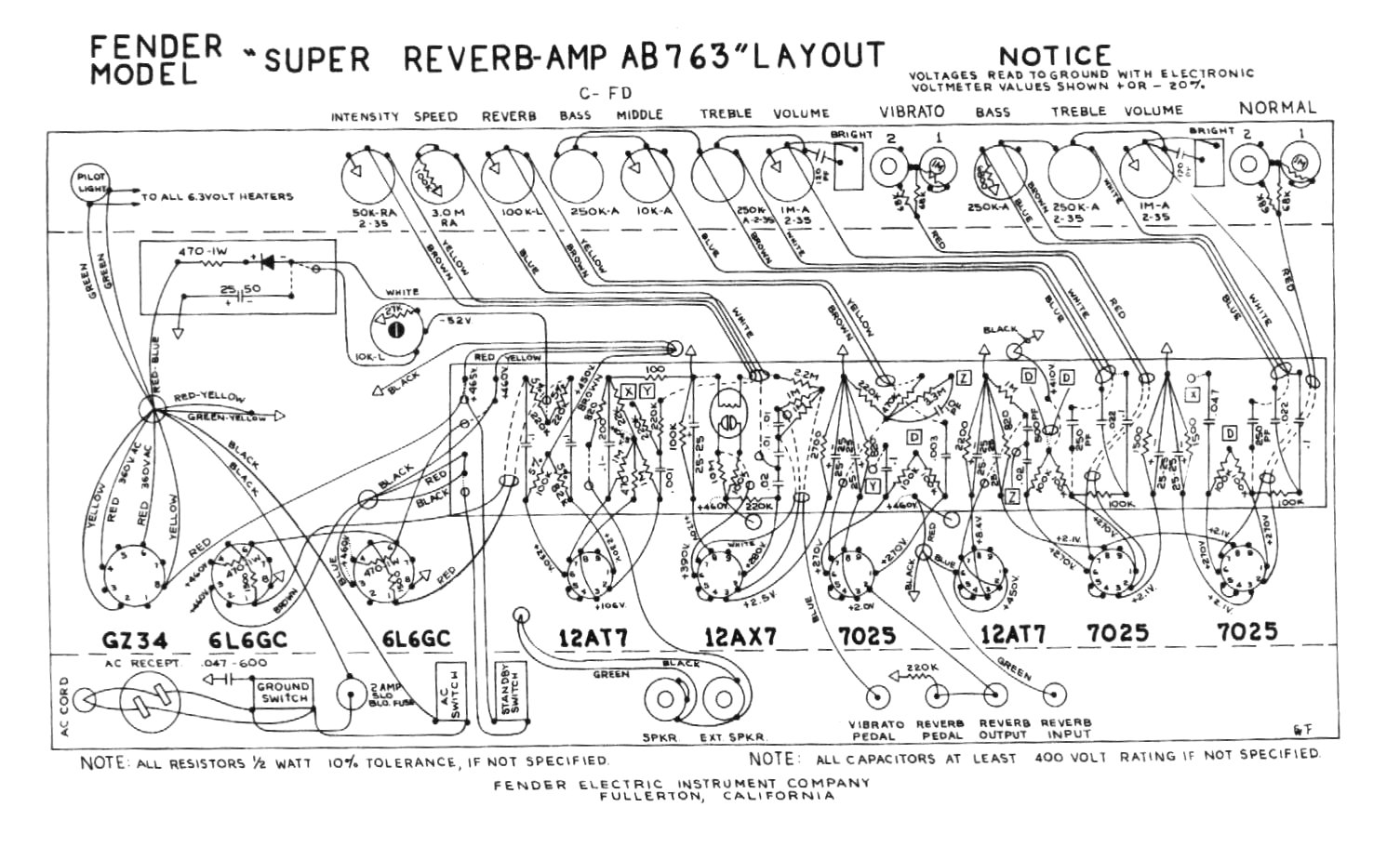

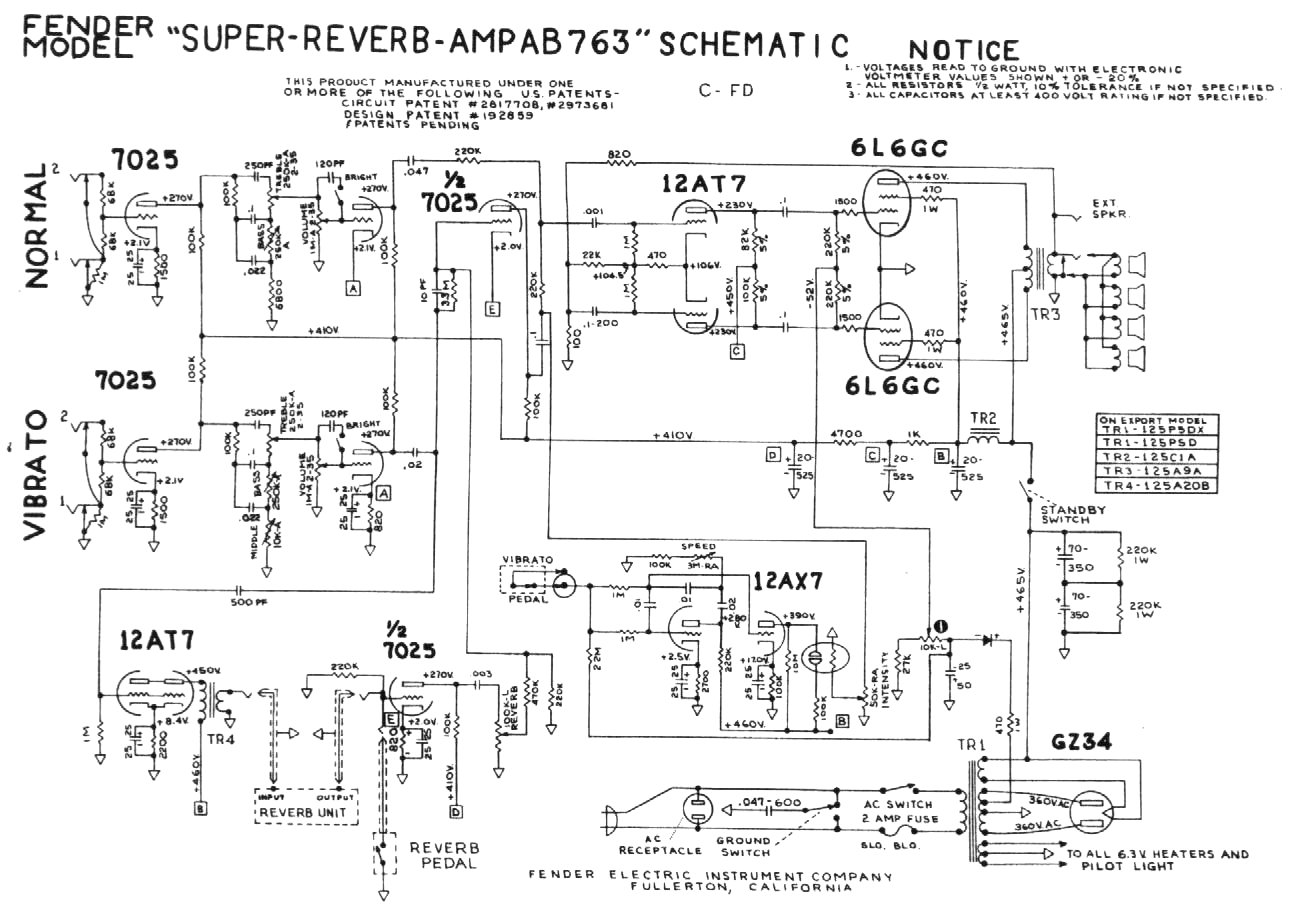

1965 Blackface Super Reverb AB763 Schematic, Layout, NEW: Excellent Layout from WeberSpeakers.com
Most Fender Schematics
(scroll down for photos)
